Description
REPLACE ANALOG GAUGES WITH ELECTRONIC DISPLAYS

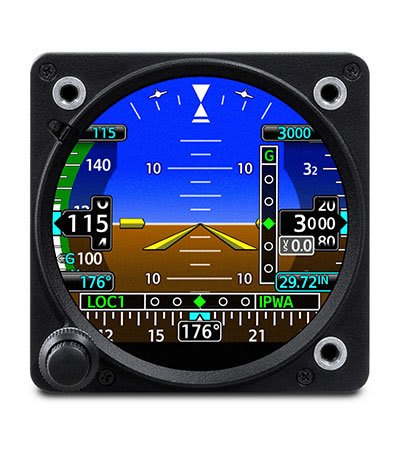

Adaptable to a full range of instrument formats and functions, our GI 275 electronic display lets you keep the classic look of your panel while upgrading with modern, reliable glass touchscreen display technology.
Out with the old, in with the new. It flush mounts in a standard 3-1/8” round cutout.
From piston singles to jets, it’s STC’d for more than 1,000 make/model aircraft.
How do you see it? Attitude, altitude, airspeed, CDI, HSI, MFD or EIS.
It’s available with precise digital ADAHRS and interface to drive select autopilots.
Connect your cockpit with built-in Wi-Fi® connectivity and BLUETOOTH® technology.
Know you’ll get home with up to 60 minutes of optional backup battery power.
Fly with an attitude that inspires trust.
BASIC ATTITUDE
Save weight and maintenance expense: replace that aging vacuum pump-driven attitude indicator — such as the KI-256 — with a reliable solid-state ADAHRS-driven GI 275 electronic display.
A LESS ARTIFICIAL HORIZON
To add situational awareness, your display can overlay attitude reference on an optional Garmin SVT™ synthetic vision landscape with flight path marker integration.
INSTRUMENT CONSOLIDATION
As your primary flight reference instrument, GI 275 features an integrated display to support all the essential readouts — attitude, altitude, airspeed and heading.
EDGE-TO-EDGE DISPLAY
The bright, high-resolution GI 275 touchscreen is sunlight-readable and maximizes the available space within the instrument panel cutout.
REFERENCE MARKERS
The GI 275 instrument can support display of selectable references to mark your arrival at a preselected altitude, heading or airspeed. Think overshoot avoidance.
ADI AUTOPILOT INTEGRATION
With optionally available built-in autopilot interface, GI 275 can provide precise attitude information to drive select autopilots (including the GFC™ 500 autopilot) and display flight director command bar cues1.
STANDBY ADI
For select aircraft and glass cockpit systems2, GI 275 can function as a standby flight instrument with MFD capability3 for mapping, traffic, weather and more.
KNOB OR TOUCH CONTROLS
The touchscreen on GI 275 makes accessing its functions a breeze. A traditional concentric knob is also available for those who prefer that style of data input.
COMPATIBLE WITH SMART GLIDE™ TECHNOLOGY
When paired with the GTN™ Xi series navigator, GI 275 enables Smart Glide™ to give you a helping hand during an engine failure — including recommending an airport and creating a Direct-to route so you can land.
Gain solid direction for primary navigation.
NAVIGATION GUIDANCE
In addition to primary magnetic heading reference, GI 275 can accept inputs for VOR/LOC and/or GPS course guidance — along with distance and groundspeed indications.
TRACK IN ALL DIMENSIONS
For climb/descent profiles and approaches, GI 275 can display both vertical and lateral GPS/VOR/LOC course deviation cues, when available.
ENHANCED HSI
With appropriate Nav inputs, GI 275 can optionally add HSI course guidance overlaid on a moving map display with flight plan legs, terrain, weather and more.
COMPLETE CDI SOLUTION
When paired with select VHF Nav/Comms or GPS navigators, GI 275 can serve as your primary indicator for making, adjusting and tracking course selections.
DUAL ADVANTAGES
With dual GI 275 displays4 as your primary flight instrumentation, reversionary backup capability retains attitude and heading data5 on the remaining HSI or MFD if an outage should occur6.
DIRECT-TO
For backup or nonprimary Nav reference, built-in VFR GPS capability5 enables convenient Direct-to guidance with position depicted on the moving map display.
See more information, not more instruments.
MULTIFUNCTION DISPLAY
When configured as an MFD, GI 275 can serve multiple roles, supporting displays for moving map, traffic, lightning, weather, terrain, radar altimeter, CDI and more.
MOVING MAP
Within the MFD configuration, a dynamic moving map page offers views of terrain features, airports, airspace boundaries, navaids, flight plan routings and more.
TRAFFIC AND WEATHER
With select ADS-B “In” datalinks, GI 275 MFD pages will support subscription-free U.S. weather and traffic displays, including TargetTrend™ and TerminalTraffic™ technologies.
ANIMATED NEXRAD
When paired with an optional GDL® 69 SiriusXM® receiver, the MFD-configured GI 275 offers display capability for satellite weather coverage with graphical NEXRAD imagery.
RADAR ALTIMETER
For applications that require precise tracking of aircraft altitude above the terrain, GI 275 can provide display capability for select radar altimeters, including the Garmin GRA™ altimeter series.
WIRELESS DATA STREAMING
Use built-in wireless connectivity to share data between GI 275 and compatible mobile apps. Import databases. Stream weather, traffic, attitude information, EIS and more5.
TRANSPONDER CONTROL
In addition to ADS-B display capabilities, GI 275 can control GTX™ 345/GTX 345R series transponders. This allows pilots to control settings — such as squawk code, ident and flight ID — directly from the instrument’s touchscreen display.
